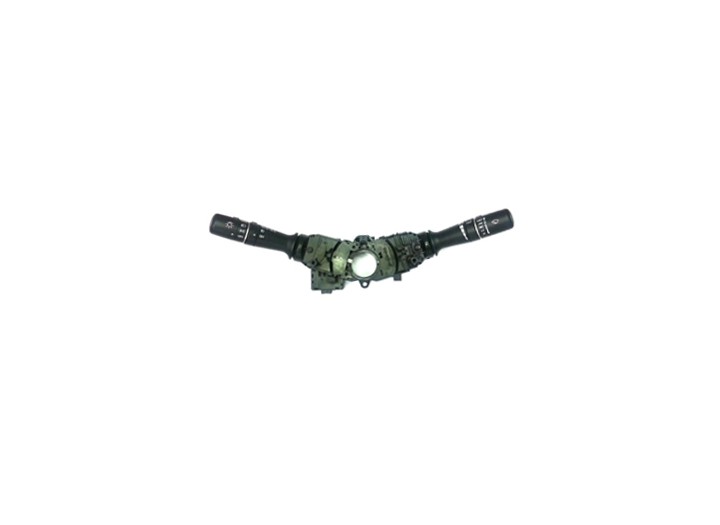

컬럼스위치
| 자동차 메이커 | 기아 |
|---|---|
| 업무 범위 | 1. 3D, 2D 설계 2. 개발 - 금형, PCB Ass’y |
| 제공범위 | 1. 3D,2D Data 2. 금형설계,제작 3. 금형데이터 |
| 비고 | 설계 및 개발 |
목록으로
- PREVIOUS도어 래치 트렁크 래치
- NEXT히터컨트롤(HVAC)
본문
|
NO |
Products |
Control Type |
Project Name |
Function |
Structure |
Customer |
Maker |
|
1 |
|
Direct Load Signal |
TQ |
1. Wiper and Lighting 2. Auto Lighting 3. Rain Sensing |
1. Direct Load 1) Terminal Insert |
LSAT |
KIA |
|
|
Signal |
1. Wiper and Lighting 2. Auto Lighting 3. Trip Control, etc |
1. Separable Lever 2. Tact + PCB Ass’y |
KH |
Specification
- Load Voltage : DC 12V
- Operating Voltage : DC 9V ~ DC 16V
Function & Features
- Trip Control / - Horn Function
- AUTO Lighting / - Turn Signal Lamp
- Auto Front Wiper
- Front / Rear Wiper and Washer
- Lights ON/OFF (Head Lamp, Fog Lamp, Tail Lamp)
Operating Type
- Slider Lock Type
- Push Self Return Type
- Slider Self Return Type
- Rotary Lock & Self Return Type
Characteristic
- High Current Type
- Signal Current Type
- LIN/CAN Communication
- Separable Lever Ass’y
- Flexible Lever Ass’y Design change
- Operating Temperature : -30℃ ~ 85℃
